Retrieve and send the log of a mobile app

Example of the final result​

example of notification made by an app user

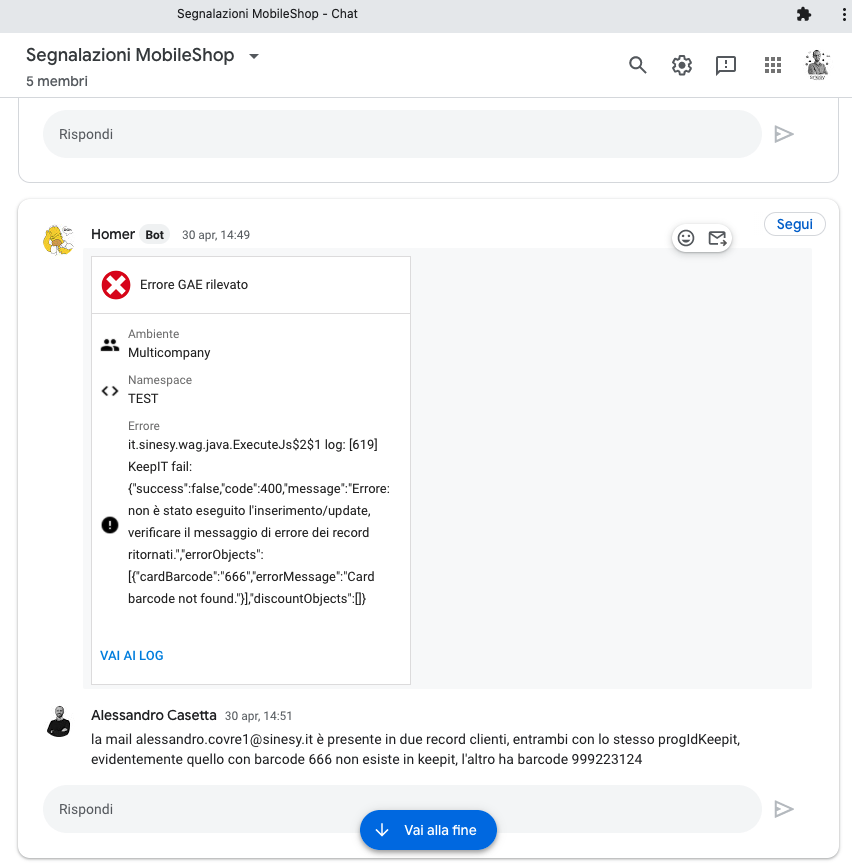

example of automatic report on error

Retrieve and send the log ​

The following code allows you to:

  • retrieve the log of your application
  • retrieve the local database
  • upload everything to a bucket on GCP
  • send a message to a chat room with links to download everything

Client side action​

This action can be invoked for example when the user presses a "send report" button.

Replace XXX_SERVER_ACTION_ID with your server action and logDir whit the bucket folder id.

in this action there are 4 important functions that you can adapt to your purpose:

  • saveUnsentCrash
  • saveDb
  • saveScreenshot
  • saveLog
  • sendChatNotification
/**
 * Send a notification to Chat
 */
function sendChatNotification() \{

    var notifParam = \{
        fileLogPath: destFileNameLog,
        fileDbPath: destFileNameDb,
        fileCrashPath: destFileNameCrash,
        fileScreenPath: destFileNameScreen
    \};

    var notifNote = "";

    if (!notifParam.fileLogPath || notifParam.fileLogPath == "") \{
        notifNote += "Nessun LOG inviato\n";
    \}
    if (!notifParam.fileDbPath || notifParam.fileDbPath == "") \{
        notifNote += "Nessun DB inviato\n";
    \}
    if (!notifParam.fileScreenPath || notifParam.fileScreenPath == "") \{
        notifNote += "Nessuno SCREENSHOT inviato\n";
    \}
    if (!notifParam.fileCrashPath || notifParam.fileCrashPath == "") \{
        notifNote += "Nessun CRASH inviato\n";
    \}

    if (notifNote && notifNote != "") \{
        notifNote += "\n";
    \}

    if (note && note != "") \{
        notifNote += note;
    \}

    notifParam.note = notifNote;

    executeServerAction(XXX_SERVER_ACTION_ID, notifParam);
\}


/**
 * Upload log error
 */
function showError()\{
    //invio le notifiche, anche se parziali
    asyncFunction("sendChatNotification", []);

    //....update your UI
\}

/**
* Callback after file send
**/
function sendCallback(responseFromWebService) \{

    if(!responseFromWebService)\{
        showError();
    \}else\{
        var respObj = JSON.parse(responseFromWebService);
        if(respObj.success)\{
            asyncFunction("sendChatNotification", []);

            //....update your UI
        \}else\{
            showError();
        \}
    \}

\}

/**
 * Save on bucket crashes not sent to crashlytics
 */
function saveUnsentCrash(connectionData)\{
    log("Connection data: " + connectionData);
    try\{
        //recupero il file di log
        var crashPath = getCrashlyticsUnsentReports();
        if(crashPath)\{

            //invio il file al server che lo carica nel bucket
            var logDir = 49;
            //platform in autmatico mette già COMPANY_ID/SITE_ID
            //il file avrà un percorso tipo 210_1001/210_1001_20191126_123000.zip
            destFileNameCrash = destFilePrefix + "_CRASH.zip";
            var url = getBaseURL() + "/uploadfiles/uploadfilegrid?appId=MOBILE_SHOP&applicationId=MOBILE_SHOP&dirId=" + logDir + "&unzip=false&restfulToken="+getToken();
            sendFile(url, crashPath, destFileNameCrash, "saveDb");
        \}else\{
             log("[3629] saveUnsentCrash SKIPPED NO PATH");
            saveDb();
        \}

        try\{
            //invio i report mancanti a crashlytics
            sendCrashlyticsUnsentReports();
        \}catch(ec)\{
            log("[3629] sendCrashlyticsUnsentReports error: " + ec);
        \}

    \}catch(e)\{
        log("[3629] saveUnsentCrash ERROR: " + e);
        saveDb();
    \}
\}

/**
 * Save on bucket the app db
 */
function saveDb() \{

    try \{
        var dbPath = getDbPath("DBNOSYNC"); //DBNOSYNC | DBCON | DBREADONLY

        if (dbPath) \{
            var zipPathDb = zipFile(dbPath,"dbnosync.zip");
            //invio il file al server che lo carica nel bucket
            var logDirDb = 49;
            var filePathDb = zipPathDb;
            //platform in autmatico mette già COMPANY_ID/SITE_ID
            //il file avrà un percorso tipo 210_1001/210_1001_20191126_123000.zip
            destFileNameDb = destFilePrefix + "_DB.zip";
            var urlDb = getBaseURL() + "/uploadfiles/uploadfilegrid?appId=MOBILE_SHOP&applicationId=MOBILE_SHOP&dirId=" + logDirDb + "&unzip=false&restfulToken="+getToken();
            sendFile(urlDb, filePathDb, destFileNameDb, "saveScreenshot");
        \}else \{
            log("[3629] saveDb SKIPPED NO PATH");
            saveScreenshot();
        \}
    \}catch(e) \{
        log("[3629] saveDb ERROR: " + e);
        saveScreenshot();
    \}
\}

/**
 * Save on bucket an eventualy user screenshots passed in the window params
 */
function saveScreenshot() \{
    log("[3629] SAVE SCREEN");
    try \{
        //uso il path fisso!!
        var screenPath = getWindowParameter('screenshotPath');
        log("[3629] screenPath: " + screenPath);
        if (screenPath) \{
            var zipPathScreen = zipFile(screenPath,"screenshot.zip");
            //invio il file al server che lo carica nel bucket
            var logDirDb = 49;
            var filePathScreen = zipPathScreen;
            //platform in autmatico mette già COMPANY_ID/SITE_ID
            //il file avrà un percorso tipo 210_1001/210_1001_20191126_123000.zip
            destFileNameScreen = destFilePrefix + "_SCREEN.zip";
            var urlDb = getBaseURL() + "/uploadfiles/uploadfilegrid?appId=MOBILE_SHOP&applicationId=MOBILE_SHOP&dirId=" + logDirDb + "&unzip=false&restfulToken="+getToken();
            sendFile(urlDb, filePathScreen, destFileNameScreen, "saveLog");
        \}else \{
            log("[3629] saveScreenshot SKIPPED NO PATH");
            saveLog();
        \}
    \}catch(e) \{
        log("[3629] saveScreenshot ERROR: " + e);
        saveLog();
    \}
\}

/**
 * Save on bucket the log file
 */
function saveLog()\{
    log("[3629] NOTE SEGNALAZIONE: " + note);
    //recupero il file di log
    var logPath = getLogFilePath();
    if(logPath)\{

        //faccio uno zip del log
        var zipPath = zipFile(logPath, "log.zip");
        if(zipPath)\{

            //invio il file al server che lo carica nel bucket
            var logDir = 49;
            var filePath = zipPath;
            //platform in autmatico mette già COMPANY_ID/SITE_ID
            //il file avrà un percorso tipo 210_1001/210_1001_20191126_123000.zip
            destFileNameLog = destFilePrefix + "_LOG.zip";
            var url = getBaseURL() + "/uploadfiles/uploadfilegrid?appId=MOBILE_SHOP&applicationId=MOBILE_SHOP&dirId=" + logDir + "&unzip=false&restfulToken="+getToken();
            sendFile(url, zipPath, destFileNameLog, "sendCallback");

            //condivide lo zip con le app presenti nel device
            //shareDocument(zipPath,log.zip);
        \}else\{
            log("[3629] no zipPath");
            showError();
        \}
    \}else\{
        log("[3629] no logPath");
        showError();
    \}
\}

function inviaSegnalazione() \{
    //invia crahs, log e db dell'app
    saveUnsentCrash("");
\}


var lastSyncDate = getVariable("LAST_SYNC_DATE");

var destFilePrefix = userInfo.username + "/" + userInfo.username + "_" + userInfo.deviceId + "_" + stringifyDate(new Date().getTime(), "yyyyMMdd_HHmmss", true);
var destFileNameLog = "";
var destFileNameDb = "";
var destFileNameCrash = "";
var destFileNameScreen = "";
var note = ""//TODO get user not from your UI

asyncFunction("inviaSegnalazione", [],400);


Server side action​

Replace WEB_HOOK_URL with the id of your web hook.

function appendWidget(topLabel,content,contentMultiline,iconUrl) \{
    var tmpWdgt = \{
        "keyValue": \{
            "topLabel": topLabel,
            "content": content,
            "contentMultiline":contentMultiline,
            "iconUrl":iconUrl
        \}
    \};
    widgets.push(tmpWdgt);
\}

//Invia la notifica a google Chat se viene caricata una segnalazione nel bucket

//WEBHOOK DI GOOGLE CHAT
var googleChatURL = "WEB_HOOK&threadKey="+utils.getUUID();
utils.log("[8479] vo: " + JSON.stringify(vo,jsonReplacer),"INFO");

var response = \{succcess:true\};
var BUCKET_DIR_ID = 49;//bucket segnalazioni

try\{
    var bucketName = utils.getDirectoryPath(BUCKET_DIR_ID);
    var expiration = new Date().getTime() + (60 * 60 * 1000); //il link ha durata di 60 minuti
    var filePathBase = userInfo.companyId + "/" + userInfo.siteId + "/";

    var buttonsArr = [];
    //LOG DELL'APP
    if (vo.fileLogPath) \{
        var fileLogPath = filePathBase + vo.fileLogPath;
        var bucketLogUrl = utils.getGoogleCloudStorageSignedURL("GET", expiration, bucketName, fileLogPath, null) + "";
        //aggiungo il bottone per scaricare il db dell'app
        var logButton = \{
            "textButton": \{
                "text": "CONTROLLA SEGNALAZIONE (60min Link)",
                "onClick": \{
                    "openLink": \{
                        "url": bucketLogUrl
                    \}
                \}
            \}
        \};
        buttonsArr.push(logButton);
    \}
    //DB DELL'APP
    if (vo.fileDbPath) \{
        var fileDbPath = filePathBase + vo.fileDbPath;
        var bucketDbUrl = utils.getGoogleCloudStorageSignedURL("GET", expiration, bucketName, fileDbPath, null) + "";
        //aggiungo il bottone per scaricare il db dell'app
        var dbButton = \{
            "textButton": \{
                "text": "SCARICA DATI APPLICATIVI (60min Link)",
                "onClick": \{
                    "openLink": \{
                        "url": bucketDbUrl
                    \}
                \}
            \}
        \};
        buttonsArr.push(dbButton);
    \}
    //CRASH DELL'APP
    if (vo.fileCrashPath) \{
        var fileCrashPath = filePathBase + vo.fileCrashPath;
        var bucketCrashUrl = utils.getGoogleCloudStorageSignedURL("GET", expiration, bucketName, fileCrashPath, null) + "";
        //aggiungo il bottone per scaricare il db dell'app
        var crashButton = \{
            "textButton": \{
                "text": "SCARICA CRASH NON INVIATI (60min Link)",
                "onClick": \{
                    "openLink": \{
                        "url": bucketCrashUrl
                    \}
                \}
            \}
        \};
        buttonsArr.push(crashButton);
    \}
    //SCREENSHOT DELL'APP
    if (vo.fileScreenPath) \{
        var fileScreenPath = filePathBase + vo.fileScreenPath;
        var bucketScreenUrl = utils.getGoogleCloudStorageSignedURL("GET", expiration, bucketName, fileScreenPath, null) + "";
        //aggiungo il bottone per scaricare il db dell'app
        var screenButton = \{
            "textButton": \{
                "text": "SCARICA SCREENSHOT (60min Link)",
                "onClick": \{
                    "openLink": \{
                        "url": bucketScreenUrl
                    \}
                \}
            \}
        \};
        buttonsArr.push(screenButton);
    \}

    var widgets = [];
    //Widget Company - Site
    appendWidget(
        "Company - Site",
        userInfo.companyId + " - " + userInfo.siteId,
        "true",
        "https://github.com/google/material-design-icons/blob/master/png/social/group/materialicons/24dp/1x/baseline_group_black_24dp.png?raw=true"
    );
    //Widget Username
    appendWidget(
        "Utente",
        userInfo.username,
        "true",
        "https://github.com/google/material-design-icons/blob/master/png/social/person/materialicons/24dp/1x/baseline_person_black_24dp.png?raw=true"
    );
    //Widget Data e Ora segnalazione
    appendWidget(
        "Data e Ora Segnalazione",
        utils.convertDateToString(utils.getCurrentDateAndTime(), "yyyy-MM-dd HH:mm:ss"),
        "true",
        "https://github.com/google/material-design-icons/blob/master/png/social/person/materialicons/24dp/1x/baseline_person_black_24dp.png?raw=true"
    );
    //widget Nome del bucket
    appendWidget(
        "Nome del bucket",
        bucketName,
        "true",
        "https://github.com/google/material-design-icons/blob/master/png/file/folder/materialicons/24dp/1x/baseline_folder_black_24dp.png?raw=true"
    );

    //Widget note
    if (vo.note && vo.note !== "") \{
        appendWidget(
            "Note",
            vo.note,
            "true",
            "https://github.com/google/material-design-icons/blob/master/png/notification/sms/materialicons/24dp/1x/baseline_sms_black_24dp.png?raw=true"
        );
    \}

    //aggiungo i pulsanti
    var buttons = \{
        "buttons": buttonsArr
    \};

    widgets.push(buttons);

    var requestBody = \{
                "cards": [
                    \{
                        "header": \{
                            "title": "<b>Nuova segnalazione ricevuta</b>",
                            "imageUrl": "https://w7.pngwing.com/pngs/169/167/png-transparent-package-delivery-mail-box-parcel-box-thumbnail.png",
                            "imageStyle": "AVATAR"
                        \},
                        "sections": [
                            \{
                                "widgets": widgets
                            \}
                        ]
                    \}
                ]
            \};

    utils.getWebContent(googleChatURL, false, "POST", "application/json", JSON.stringify(requestBody,jsonReplacer), null, null);

\}catch(e) \{
    utils.log("[8479] Invio notifica fallito: " + e.toString(),"INFO");
\}
utils.setReturnValue(JSON.stringify(response,jsonReplacer));

Define an incoming webhook ​

Official documentation: https://developers.google.com/hangouts/chat/how-tos/webhooks

From the chat room menu:

  1. Select Configure Webhooks

    A dialog appears that lists any incoming webhooks already defined for the room.

  2. Click on ADD WEBHOOK.

  3. Fill in the name field and optionally the avatar URL field.

  4. Click SAVE.

  5. Copy and save the webhook URL
